Features

Specifications

Warranty: 6 Months

Applicable Industries: Cleaning

Weight (KG): 0.24

Showroom Location: None

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Condition: New

Brand: Hainertec

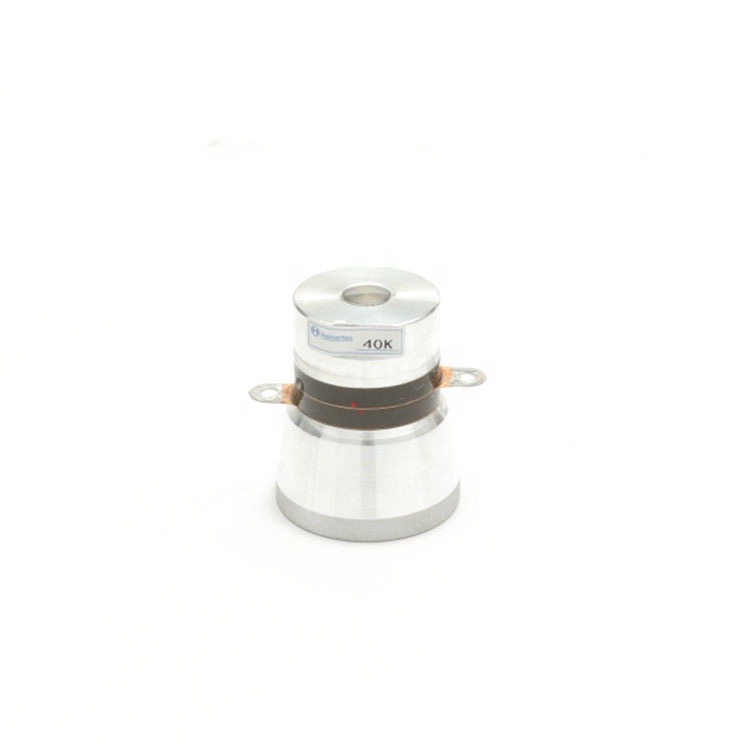

Product Name: Ultrasonic Cleaning Transducer

Frequency Tracking: 40KHZ

Power: 50

Theory: Ultrasonic Sensor

Output: Switching Transducer

Usage: Vibration Sensor

After Warranty Service: Online Support

Local Service Location: None

Basic Infomation

Payment & Shipping Terms

Packaging Details: Carton

Supply Ability: 1000 Piece/Pieces per Week

Product Description

Products Description

Application of ultrasonic cleaning in industrial and household applicances

When the high frequency vibration of power ultrasonic transducer acts into water, it will produce the cavitation effect, which can generate high-pressure shock wave and micro-jet to impact the surface of the object, so that the dirt in the surface and gap of the object can be quickly separated, so as to achieve cleaning function.

Ultrasonic transducer: It is a kind of electro-acoustic device which can realize the transformation between high frequency electric energy and high frequency mechanical energy. The transducer generally adopts a horn-type composite array structure, which has good electronic mechanical transformation efficiency and has a medium-power. Its power is nominated by the average value of continuous operation.

Ultrasonic Generator: Converting conventional power supply into high frequency and high voltage power supply and the output power supply have the same frequency as the transducers, and have the frequency tracking function.

Cavitation effect: High frequency vibration in liquid cause alternate expansion and contraction of liquid medium, produces the positive and negative pressure alternately change, When the negative pressure reaches and exceeds the binding force between liquid molecules, the liquid will be torn, and local vacuum micro-bubble nucleus will be generated. Micro-bubble nucleus expand, close and oscillate instantaneously with the action of ultrasound. At a certain energy threshold value, the micro-bubble collapses and generates a shock wave of up to 1000 atmospheres and micro-jets in an instant.

Based on the market demand, our company has developed the system products with the above functions, which are classified as follows. Parallel technology of unidirectional axial ultrasonic transducer: Ultrasonic vibration in specific direction with the power density of 0.7w/ cm². Parallel technology of multimodal plate ultrasonic transducer: Ultrasonic vibration in multi direction with the power density of 2.0w/ cm². Processing technology of multimodal bar ultrasonic transducer: Ultrasonic vibration in Axial and radial direction with the power density of 3－5W/ cm². Ultrasonic processing technology of Axial focusing pipeline: Realizing the energy focusing of cross section inside the pipeline with the power dens ity of 8.0w/ cm².

Technical parameters of unidirectional axial ultrasonic transducer

Model	Frequency （KHz）	Capacitance （pF）	Impedance（Ω）	Size D*H(mm)	Power （W）	Insulation resistance (2500VDC)	Notes
HNC-8SS-2040	42±2.0	1500±10%	≤35Ω	21*58	20w	≥100MΩ	P8 series
HNC-8SH-2040	42±2.0	1500±10%	≤35Ω	25*52	20w	≥100MΩ
HNC-8SS-2540	40±0.8	3100±10%	≤30Ω	25*58	25w	≥100MΩ
HNC-8SH-3840	40±0.5	3800±10%	≤20Ω	48*51	60w	≥100MΩ
HNC-8SH-4520	21.5±1.0	5600±10%	≤20Ω	67*92	80w	≥100MΩ
HNC-8SH-4525	25±0.5	5600±10%	≤20Ω	67*76	80w	≥100MΩ
HNC-8SH-4528	28±0.5	5600±10%	≤20Ω	67*68	80w	≥100MΩ
HNC-8SH-5020	20±0.5	4650±10%	≤25Ω	79*94	120w	≥100MΩ
HNC-4SH-2540	40±0.8	2400±10%	≤30Ω	30*50	20w	≥100MΩ	P4 series
HNC-4AH-2560	60±1.5	2300±10%	≤35Ω	30*35	20w	≥100MΩ
HNC-4AS-2565	65±1.5	2300±10%	≤35Ω	25*31	20w	≥100MΩ
HNC-4AH-3050	52±2.0	3100±10%	≤35Ω	38*40	35w	≥100MΩ
HNC-4SS-3528	28 ±0.5	4000±10%	≤20Ω	45*79	50w	≥100MΩ
HNC-4AH-3540	40 ±1.0	4000±10%	≤20Ω	45*55	50w	≥100MΩ
HNC-4SH-3825	25±0.8	5100±10%	≤20Ω	59*80	60w	≥100MΩ
HNC-4SH-3828	28±0.5	5100±10%	≤20Ω	59*68	60w	≥100MΩ
HNC-4SS-3833	33±0.5	5100±10%	≤20Ω	45*61	60w	≥100MΩ
HNC-4SH-3840	40±0.5	5100±10%	≤20Ω	48*51	60w	≥100MΩ
HNC-4SH-4525	25±0.5	7600±10%	≤20Ω	67*76	80w	≥100MΩ
HNC-4SH-4528	28±0.5	7600±10%	≤20Ω	67*68	80w	≥100MΩ
HNC-4SH-5028	28±0.5	9600±10%	≤20Ω	67*68	100w	≥100MΩ
HNC-4AH-25200	200±2.0	2300±10%	≤35Ω	30*35	20w	≥100MΩ
HNC-8SE-3828/40	28/40±1.0	3800±10%	≤30Ω	65*70	60w	≥100MΩ	Dual frequenc
HNC-8SS-2540/130	40/130±2.0	3100±10%	≤30Ω	25*58	20w	≥100MΩ	Multifrequency
HNC-4SS-3833/68	38/66±2.0	5100±10%	≤20Ω	50*65	50w	≥100MΩ
HNC-4SS-3840/80/130	38/79/128±2	4200±10%	≤25Ω	40*54	60w	≥100MΩ

Note:

If the front matching surface need install screw holes, the screw size is M10*1.0*10

This series of transducers are suitable for conventional cleaning products, such as vibration plate, cleaning tank, etc.

We accept design and custom production.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Model	Frequency(KHz)	Power（W）	LWH (mm)	Functions	Display type	Encapsulation mode	Notes
HNE-FP-SS	20～100	≤500	17513050	Separate excitation,sweep frequency, remote, power adjustable.	/	Pcb	24-48VDC或 110-220VAC
HNE-FP-SS	20～200	≤200	15010836			/	Pcb
HNH-FP-AC	20～100	≤200	1578840	Auto excitation	/	Pcb	110-220VAC
HNH-FP-SS	20-200	30W	1108036	Separate excitation，frequency sweep type, small signal remote, power adjustable, over temperature protection function.	/	Power box	24-48VDC
HNH-FP-SS	20-200	100	21511451			/	Power box	24VDC,110-220VAC
HNH-FP-SS	20-200	200	20311762			/ or LCD	Aluminum box
HNG-FP-SS	20-200	100	18515075			Conventional, LCD	Generator	110-220VAC
HNG-FP-SS	20-200	200	22020090			LCD	Generator	110-220VAC Optional power-on search function
HNG-FP-SS	20-200	400	270270130			Conventional, LCD	Generator
HNG-FP-I	20-33	2500	402324136			Conventional twist	Generator	110-220VAC
HNG-FP-II	28-50	1200	402324136			Conventional twist	Generator
HNG-FP-III	28-50	1200	402324136			Conventional, LCD	Generator
HNG-FP-SPD	20-40	2000	430200130	Digital, overload protection, adjustable power, timing, automatic frequency search	LCD	Generator	Applicable rod type

Note: Model HNE-FP-X, where E stands for packaging way(E is circuit board, H is power box, G is generator )，F stands for frequency and P stands for power, such as HNG-251500-I is 25K, 1500W);

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Company Profile

Hainertec (Suzhou) Co.,Ltd. Was founded in 2004, focusing on ultrasonic technology, it is a collection R&D, design manufacture and sales of the technology-based enterprises.

The company is mainly engaged in the development and manufacture of ultrasonic devices, accessory parts and system equipment. The main products include Piezoelectric Ceramics, Ultrasonic transducers, Ultrasonic generators and Ultrasonic system equipment. These products are widely used in medical apparatus, biological instruments, precision spraying beauty and health care, biochemical environmental protection, biological extraction, ultrasonic catalysis, industrial screening, jet printer oscillator, ultrasonic
cleaning household appliances, military industry and other fields.

The company has been cooperating with famous enterprises and university at home and abroad, and 60% of our products are exported to more than 60 countries and regions such as Europe, America, Australia, Middle East and southeast Asia.

The company has passed ISO9001 Quality System Certification. Also, it is a high-tech enterprise but also a postgraduate workstation and industry university research base, having obtained several patent at the same time.

FAQ

Q: Are you trading company or manufacturer ?
A: We are a manufacturer.

Q: How long is your delivery time

A:It depends on the type of machine.

Q: Can your machine be customized?
A: Yes, all of our machines can be customized according to your cleaning products.

Q: How about terms of payment?
A: T/T, PayPal, L/C, etc.
