Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: W2

Instrument Classification: Class II

Type: Portable Ultrasonic Diagnostic Devices

Linear Size: 170*75*25mm Weight: 260g

Convex Size: 165*75*25mm Weight:260g

Scanning System: Linear Array Scan/Convex Array Scan

Supporting System: Andriod, Windows, (IOS Comming Soon)

Connection Method: Wi-Fi Transmission

Frame Rate: 18Hz

Gray Scale: 256 Level

Seven Waterproof: IPX7

Basic Infomation

Model Number: W2

Payment & Shipping Terms

Packaging Details: 1 unit/ carton

Supply Ability: 100 Unit/Units per Month

Product Description

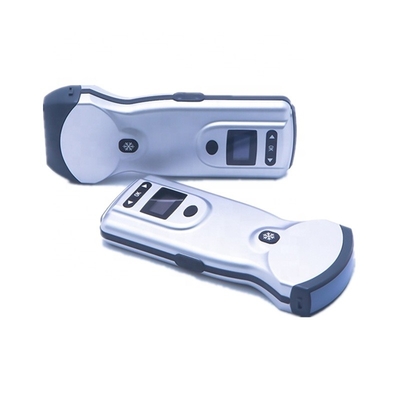

BIO W2, the wireless ultradound probe uses high quality 2D and color image could assist the user to diagnose and analyze disease definitively.

With our wireless communication technology, the probe could be applied in the emergency car and operating room while the transducer itself works as a Wi-Fi that makes it possible to perform where there are no stable electric supplies or Internet. The light-weight device makes it possible for easy access with simple performance of Wi-Fi features. It could optimize the process of ultrasound inspection and guided puncture to acquire excellent images, enhance precision and working efficiency.

The system uses a with Wireless Features of the computer, notebook computers, tablet PCs, mobile phones and other display devices as the host. In connection, the probe is connected to the host as a WI-FI access point. When the probe has been properly connected to the display device through the WIFI, start the application software (APP)

Wireless ultrasound diagnostic system is more likely to be excellent in diagnosing infants, neonatal atelectasis, predicting bronchopulmonary dysplasia, evaluating and diagnosing pulmonary edema, assessing the cause of dyspnea, diagnosing acute respiratory distress syndrome, and acute lung injury. image. The wireless ultrasound diagnosis system has higher accuracy and sensitivity than the traditional chest X-ray in the diagnosis of pneumothorax, pulmonary edema, lung consolidation, and pleural effusion.

Product Advantage

1. Innovative wireless handheld color ultrasound diagnostic instrument; 2. Multi-platform, multi-terminal Wifi connection display; 3. The general trend of the mobile medical data era; 4. Real-time clear color super image performance;

5.Smooth switch among different system interfaces 6.Instant use after replacement 4.The whole machine has passed IPX7 waterproof test 8.Disinfection for the whole machine is supported

Application For Neonatal

1, lung consolidation: bronchial aeration or bronchial fluid. 2. Diffuse "white lung" or alveolar-interstitial syndrome. 3, pleural line abnormalities. 4. The A-line disappears. 5, lung slip is reduced or disappeared, severe cases can be found in the lungs. 6, whether there is pleural effusion and so on.

Product Paramenters

Scanning system	Linear array scan/Convex array scan
Supporting system	Andriod, Windows, (IOS comming soon)
Connection method	Wi-Fi transmission
Frame rate	18Hz
Gray scale	256 level
Seven waterproof	IPX7
Pseudo color	8 kinds
Frequency	Linear: 5-10MHz
Frequency		Convex: 2-5MHz
Depth	Linear:B≥100mm CF≥80mm
Depth		Convex: B≥2260mm CF≥160mm
Display mode	B(2D)mode
		Color flow Mapping(CFM)
		PWD mode
Image Measurement	Distance, area, obstetrics and other

Standard / Optional Configuration

Standard configuration	Optional configuration
Main host(one probe) 1 unit	Interchargeable Linear Head
Internal battery 1 unit	Interchargeable Convex Head
Charger cable 1 unit	Aluminum case
Charging plug 1 unit	Shockproof bag
	Puncture rack

Details Images

Our Service

1. For all your inquires, we will reply you in detail within 24 hours

2. We own professional team who have professional attitude to recommend products and services, introducing for you.

3. The product has one year free warranty, after it is still providing after-sales service;

4. We offer OEM services. Can print your own logo on the product;

5. We have very experienced engineers; can help you better use our products.

Your satisfaction is our duty! It will be our great honor to serve you.

We do hope we can offer you more help in medical field and build the long term business relationship with you.

FAQ

Q: How to buy your products?

A: For some products we have on stock , you can take away the products after you arrange the payment ;

If we don't have stock ,we will start the production once getting the payment .

Q: What's the warranty for the products?

A: The free warranty is one year from the date of exportation date.

Q: Can we visit your factory?

A: Of course, welcome to visit our factory if you come to China.

Q: How long is the validity of quotation?

A: Generally, our price is valid within one month from the date of quotation.

The price will be adjusted appropriately as the price fluctuation of raw material in the market.

Q: What's the production date after we confirm the order?

A: This depends on the quantity. Normally, it is about 3-7 working days at sight of your payment.

Please contact us for more detail information.
