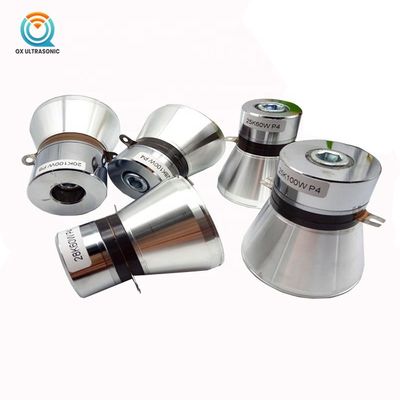

QXULTRASONIC 100W High Power 25KHZ Vibrator Piezo Transducer Ultrasonic Piezoelectric Transducer Cleaning Machine

1 Piece
MOQ
$10.00(1 - 9 Pieces) $9.80(10 - 49 Pieces) $9.50(>=50 Pieces)
Price
QXULTRASONIC 100W High Power 25KHZ Vibrator Piezo Transducer Ultrasonic Piezoelectric Transducer Cleaning Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1.5 Years
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: Viet Nam, India, Russia
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2021
Condition: New
Product Name: 25 Khz Ultrasonic Transducer
Frequency: 25KHz +/- 1KHz
Power: 100w
Static Capacity: 6600pf±10%
Length: 77mm
Radiating Diameter: 68mm
Piezoceramics Size: 45*15*5(pzt4)
Material: Aluminum
Application: Cleaning Machine
Delivery Time: Within 2 Days
After Warranty Service: Video Technical Support
Local Service Location: Viet Nam, India, Russia
Basic Infomation
Payment & Shipping Terms
Packaging Details: Carton,plywood case or required package (QXULTRASONIC 100W High Power BLT Piezo Vibrator Langevin 25 khz Ultrasonic Transducer)
Product Description

QXULTRASONIC 100W High Power 25KHZ Piezo Vibrator Transducer Ultrasonic Piezoelectric Transducer
Products Description
Ultrasonic transducer is to convert electrical energy into sound energy which also is called ultrasonic.it is composed of outer shell,matching tier,ring piezoelectric ceramic,backing material,outgoing cable and cymbal. The characteristics of transducers depend on material selection and manufacturing process. The performance and service life of transducers of the same size and shape are very different.

Main Features:

1: High mechanical Q value.
2: High transfer efficiency.
3: High quality piezoelectric ceramic material with good heat resistence.
4: Large range of working temperature.
5: Lower resonant Impedance.
6: Large amplitude,high vibration speed.
7: Clean and tidy appearance,without corrosion,deformation and scratch.
8: Frequency and static capacitance keep more consistency.
9: High output power.
10: ight with bolt ,be easy to install,reliable .

Application:

•Strong cavitations,powerful and effective, quick detergence.
•Automotive and aerospace industry,mechanical industry,plating industry etc.
Product Picture
Product Paramenters
& If you are interested in our product,
& Pls just feel free to send us your inquiry.
& We wil try our best to quote the competitive price for you!----- Contact Us Now
Get More Informations How to Bond Uitasonic transducer Pls Contact Us Now
Recommend Products
Related Products
♥ More Informations How to Connect with Ultrasonic Transducer with Ultrasonic Generator to Build High Quality Ultrasonic Cleaner. Pls Contact Us Now
