Features Gallery Product Description Request A Quote

Features

Specifications

Warranty: 1.5 Years

Applicable Industries: Machinery Repair Shops, Electroplated Parts Factory

Showroom Location: None

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Condition: New

Item Name: Immersible Plate Submersible Ultrasonic Transducer

Ultrasonic Power: 600W-2400W Customized

Ultrasonic Transducer: 12-48 Pcs

Voltage: AC 220V/110VÂ±10%(50/60KHz)

Max Temperature: 90â„ƒ

Application: Industrial Parts Cleaning

Material: Stainless Steel 304/316L

Usage: Metal, Hardware Mechanical Parts, Lens Cleaning

Vibration Plate Size: Customzied

Whatsapp: +8613823278054

After Warranty Service: Video Technical Support, Spare Parts

Local ServiceÂ Location: None

Basic Infomation

Payment & Shipping Terms

Packaging Details: 600w to 2400w custom immersible plate submersible ultrasonic transducer in export plywood case.

Supply Ability: 2000 Set/Sets per Month custom immersible plate submersible ultrasonic transducer

Product Description

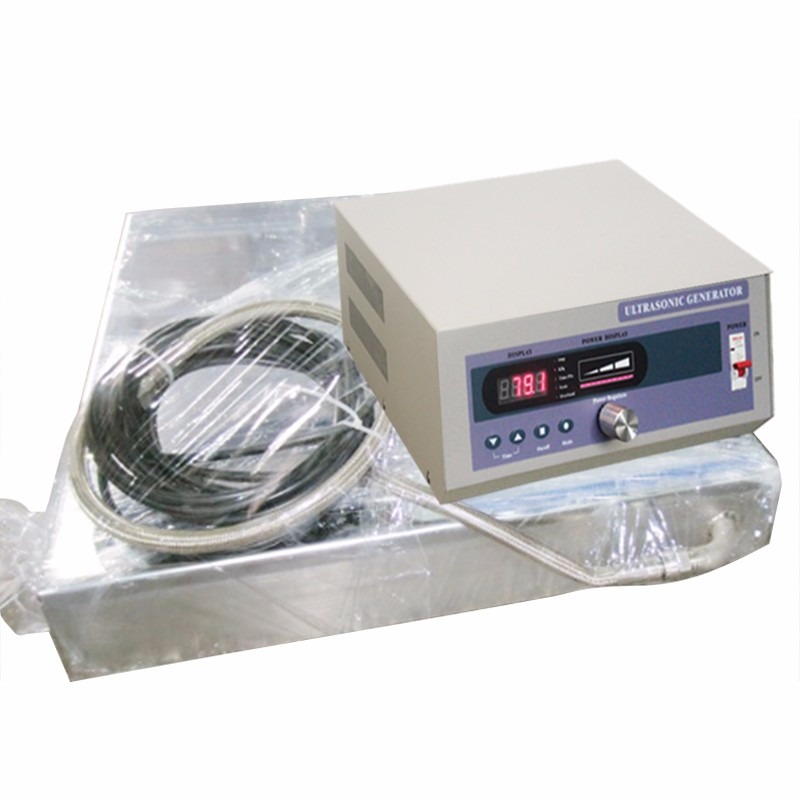

600w to 2400w custom immersible plate submersible ultrasonic transducer

Product Description

The ultrasonic cleaning device is composed of an immersed ultrasonic transducer and a generator. If the standard ultrasonic cleaner cannot be used in a specific working environment, you can also make an immersion ultrasonic transducer package according to customized special specifications. The working position can be installed on the top, bottom or both sides of the tank to achieve different cleaning effects.

Features:

All stainless steel structure, acid and alkali resistance, beautiful and durable. Use strong acid and strong alkali resistant titanium plate material to strengthen and fasten welding.
It is welded by thick 316L stainless steel with good sealing performance.
Adopt Japanese Fuji chip oscillator with high ultrasonic power.
The ultrasonic generator and the water immersion transducer are connected by a separate high-frequency wire, which is convenient for maintenance.
It can work continuously for 24 hours, suitable for mass production.

Specification:

Model No.	JYD-1012P	JYD-1018P	JYD-1024P	JYD-1030P	JYD-1036P	JYD-1042P	JYD-1048P
Ultrasonic power	600W	900W	1200W	1500W	1800W	2100W	2400W
Transducer quantity(pcs)	12	18	24	30	36	40	48
Ultrasonic frequency	17/20/25/28/40/53/68/80/100/132/170/200Khz
Material	SUS304 or SUS316L 2.0-3.0mm thickness chrome coated
Power supply	AC220V±10% 50/60Hz or AC220V±10% 50/60Hz
Transducers box Size(mm)	350300100	450300100	550400100	580450100	600500100	650550100	700600100

Application:

The immersible transducer box and generator are separate but work together to operate ultrasonic cleaning process, The

Transducer box immersible be mounted in fluid tank.
