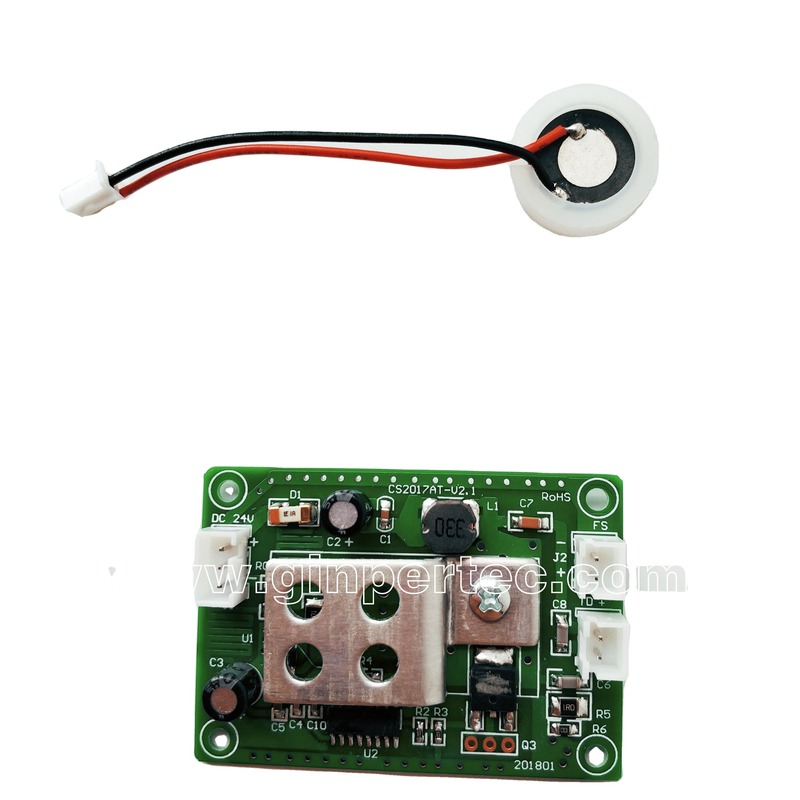

Name: Ginpertec Ultrasonic Atomizing Transducer Driver Kit PCB GPWH
Brand: Ginpertec Ultrasonic Atomizing Transducer Driver Kit PCB GPWH
SKU: GPWH
Price: 1 USD
Availability: InStock
Rating: 4.6 (180 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: GPWH

Type: High Frequency Ceramics

Frequency: 2.4mhz

Basic Infomation

Model Number: GPWH

Payment & Shipping Terms

Packaging Details: Carton

Supply Ability: 10000 Piece/Pieces per Month

Product Description

Ultrasonic Application

Ultrasonic Humidity

1. Ultrasound nebulizer with 1.7M /2.4 M frequency (nebulizer frequency can also be changed according to customer requirements
2. Potentiometer can be used to adjust the size of atomization
3. Use the reed tube to detect water shortage. It is sensitive to react. At the first moment, it ensures that the atomizer
prevents dry burning, protects the life of the whole machine. Red light indication when water shortage occurs and green light
indication when normal.
3. Inside 24V Fan Drive or customized

Ultrasonic Medical Mesh atomize

This specification piconets atomization is mainly used in respiratory medical atomization,
works by PZT piezoelectric ceramic piezoelectric high-frequency vibration performance of the liquid through micro omentum
stainless steel sheet, scattered form 3-5 microns diameter of aerosol particles, the aerosol into the oral cavity and the
respiratory tract disease treatment.。

Model	GPWH-4F1.7-2016	GPWH-4F2.4-2016	GPWH-4F3-2016	GPWH-4F1.7-2520	GPWH-4F2.4-2520	GPWH-4F3-2520
Overall Diameter	20mm	20mm	20mm	25mm	25mm	25mm
Piezo Dimater	16mm	16mm	16mm	20mm	20mm	20mm
Resonant frequency(Fs)	1.7mhz	2.4mhz	3mhz	1.7mhz	2.4mhz	3mhz
Resonant impedance (Zr)	＜2.5mm	＜2.5	＜2.5	＜2.5	＜2.5	＜2.5
Voltage (V)	≤ 36	≤ 36	≤ 36	≤ 36	≤ 36	≤ 36
Driver Power (w)	24	12	5	24	12	5
Dry	＜30	＜30	＜30	＜30	＜30	＜30
Working Temperature	5-40’C	5-40’C	5-40’C	5-40’C	5-40’C	5-40’C
Electrode protector	Glass glaze	Glass glaze	Glass glaze	Glass glaze	Glass glaze	Glass glaze
Electrode Material	Ag	Ag	Ag	Ag	Ag	Ag
Water Quality	Drinking water	Drinking water	Drinking water	Drinking water	Drinking water	Drinking water
Atomizing Quantity(mL)	350/min	250/min	200/min	350 /min	250/min	200/min
Life (h)	5000	5000	5000	5000	5000	5000
Capacitance (pF)	1500±20%	1500±20%	1500±20%	1500±20%	1500±20%	1500±20%

Model	Resonant frequency	Resonant resistance	Electrostatic capacitance	Punching area	Number of micropores
Model		khz	(Ω)	pf	S (mm)	PCS
GP20-111K	111±3K	≤100	3000	3-5.0	Medical
MESH	111±3K	≤100	3000	3-5.0			800-3000
GP20-112K	111±4K	≤100	3000	3-5.0	600-800
Beauty water replenishing instrument	111±4K	≤100	3000	3-5.0	600-800
GP20-108K	108±3K	≤100	3000	3-5.0	Medical
Convex medical atomizer	108±3K	≤100	3000	3-5.0			800-3000
GP20-108K	108±3K	≤100	3000	3-4.5	400-600
ConvexBeauty water replenishing	108±3K	≤100	3000	3-4.5	400-600
GP16-108K	108±3K	≤100	3000	3~5	500-800
ConvexBeauty water replenishing	108±3K	≤100	3000	3~5	500-800
GP16-108K	108±3K	≤100	3000	3~5	800-3000
Convex medical atomizer	108±3K	≤100	3000	3~5	800-3000
GP16-115K	115±3K	≤100	3000	≥3.0	500-700
GP16-145K	145±3K	≤100	2000	≥3.0	500-700
GP13.8-160K	160±5K	≤150	1300	≥3.0	400-600
GP13.8-150K	150±5K	≤150	1300	≥3.0	400-600
GP12-160K	160±5K	≤150	1300	≥3.0	300-600
GP10-160K	160±5K	≤150	1300	≥0.6	300-600

Ultrasonic Mirco Atomize

1. The atomizing particles are small, the conversion efficiency is high, and the atomizing amount is large. 2. Working voltage: DC 3-12v. 3. Good atomization effect: 50-300ml / h. 4, circular design, intermediate spray, stable quality, small outlet aperture, ranging from 7um~9um to a series of specifications. 5. Specification: diameter (10-20 mm) purpose: supply USB humidifier circuit and atomization sheet, using new micropore technology, using high frequency ultrasonic physical vibration principle, high frequency vibration produces negative ions, the generated negative ions can quickly mix with the air, remove harmful gases and bacteria in the air. Play a fresh air, adjust humidity, remove air odor, can promote blood circulation, reduce the occurrence of disease, effectively keep the air fresh. 6. It can be applied directly to the surface of the water, mainly on heavy atomized toys, USB power desk Mini humidifiers, essential oils and perfume atomization, mosquito perfume spray and facial cosmetic atomization.

Diameter

Ø10mm

Ø12mm

Ø13.8mm

Ø16mm

Ø18mm

Ø20mm

Resonant frequency

185±5khz

180±5khz

155±5khz

160±5khz

110±5khz

112±5khz

135±5khz

99±5khz

113±5khz

Working Voltage（V）

3-12V

Resonant impedance

＜165

Capacitance (Pf)

1450±15%

1700±15%

3200±15%

3300±15%

3500±15%

Substrate hardness

≥0.05mm

Coupling coefficient

≥55%

SUS thickness(mm)

0.15（ Flat ）

0.05(Emboss)

0.15(Flat)

0.05(Emboss)

0.15(Flat)

0.05 (Emboss)

0.15(Flat)

Punching area (mm)

1-3.5

1-5.0

Hole Mesh(Piece)

1-500

1-800

1-1500

Aperture (Um)

3-20

Plugging rate

≤2

Ginpertec Ultrasonic Atomizing Transducer Driver Kit PCB GPWH

Ultrasonic Humidity

Ultrasonic Medical Mesh atomize

Ultrasonic Mirco Atomize
