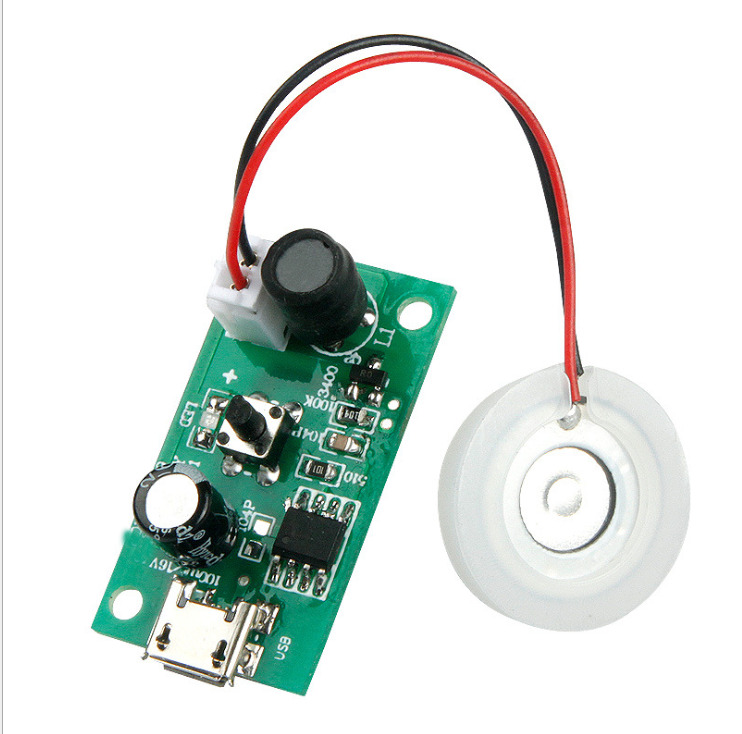

Ultrasoic Ginpertec Microporous Ultrasonic Microporous Nebulizer Transducer and PCB 5V

5.0 Sets
MOQ
$5.00(5 - 499 Sets) $3.00(>=500 Sets)
Price
Ultrasoic Ginpertec Microporous Ultrasonic Microporous Nebulizer Transducer and PCB 5V
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Ultrasoic Microporous
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: ULTRASONIC
Condition: New
Voltage: 5V
Weight: 0.01
Warranty: 1 Year
Frequency: 190khz
Diameter: 10mm
Timer: 2-8 Hours
After Warranty Service: Online Support
Local Service Location: None
After-sales Service Provided: Online Support
Certification: RE,ROHS
Basic Infomation
Certification: RE,ROHS
Payment & Shipping Terms
Packaging Details: Carton
Supply Ability: 10000 Set/Sets per Month
Product Description
Microporous atomizing sheet is a new type of atomizing sheet, which is a combination of steel sheet and ceramic. When working on the water surface, the working voltage and current are small, then 5V can work. The manufacturing process is more, the price is relatively higher, and the service life can be as long as 5000h. Commonly used in mini humidifier, beauty apparatus, medical sprayer. Its uses: Beauty atomizing tablets, water replenishing apparatus atomizing tablets, humidifier atomizing tablets, industrial humidification, medical atomization, aromatherapy atomization, garden fogging, etc.
Product Description
Specification
Diameter
Ø10mm
Ø12mm
Ø13.8mm
Ø16mm
Ø18mm
Ø20mm
Resonant frequency
185±5khz
180±5khz
155±5khz
160±5khz
110±5khz
112±5khz
135±5khz
99±5khz
113±5khz
Working Voltage(V)
3-12V
3-12V
3-12V
3-12V
3-12V
3-12V
3-12V
3-12V
3-12V
Resonant impedance
<165
<165
<165
<165
<165
<165
<165
<165
<165
Capacitance (Pf)
1450±15%
1450±15%
1700±15%
1700±15%
3200±15%
3200±15%
3300±15%
3300±15%
3500±15%
Substrate hardness
≥0.05mm
≥0.05mm
≥0.05mm
≥0.05mm
≥0.05mm
≥0.05mm
≥0.05mm
≥0.05mm
≥0.05mm
Coupling coefficient
≥55%
≥55%
≥55%
≥55%
≥55%
≥55%
≥55%
≥55%
≥55%
SUS thickness(mm)
0.15( Flat )
0.15( Flat )
0.05(Emboss)
0.15(Flat)
0.05(Emboss)
0.15(Flat)
0.15(Flat)
0.05 (Emboss)
0.15(Flat)
Punching area (mm)
1-3.5
1-3.5
1-3.5
1-3.5
1-5.0
1-5.0
1-5.0
1-5.0
1-5.0
Hole Mesh(Piece)
1-500
1-500
1-800
1-800
1-1500
1-1500
1-1500
1-1500
1-1500
Aperture (Um)
3-20
3-20
3-20
3-20
3-20
3-20
3-20
3-20
3-20
Plugging rate
≤2
≤2
≤2
≤2
≤2
≤2
≤2
≤2
≤2
Company Profile
Ginpertec(Suzhou)Co.,ltd is a professional enterprise that develops, produces and sells ultrasonic equipment from the facts. The company is committed to providing users with skilled and reliable ultrasonic products to meet the needs of users. The company has a research and development team composed of domestic high-quality talents, a relatively complete management system and a nationwide sales and service network. The products are mainly used in ultrasonic industrial cleaning, medical, cosmetic, ultrasonic precision spraying, welding, ultrasonic water treatment, ultrasonic household and other related ultrasonic applications. The company pays attention to the development and application of high-tech, and takes technology as the guide and provides products with the attitude of professional enterprises. Companies adhering to the "quality-oriented, integrity for the purpose, dedication to innovation, customer-first, and dedication to customer service" business philosophy. We serve our customers with sincere enthusiasm and positive attitude. Products were exported to over 80 countries , has been praised by customers
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2019,sell to Eastern Europe(20.00%),North America(20.00%),Western Europe(10.00%),Southern Europe(10.00%),Central America(10.00%),South America(10.00%),Northern Europe(4.00%),Domestic Market(4.00%),Eastern Asia(3.00%),Oceania(2.00%),Southeast Asia(2.00%),Mid East(1.00%),South Asia(1.00%),Africa(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Ultrasonic system,Ultrasonic transducer,Ultrasonic machine,Impedance analyzer,Piezoelectric ceramic

4. why should you buy from us not from other suppliers?
Serving for Ultrasonic application 12 years ,very familiar with the ultrasonic industry Technical support from industry ultrasonic experts , have strict quality control ,Honest and trustworthy is our first standard

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
