Article
|

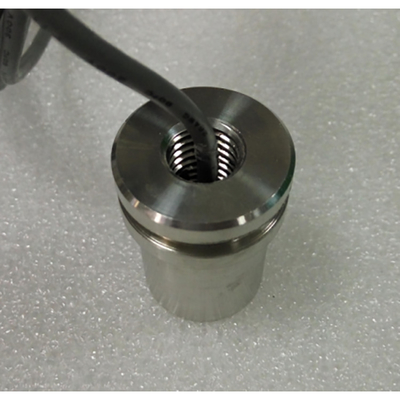

1MHzUnderwater Transducer
|
Type
|
DW-1M-01PALJZ
|
Frequency
|
1MHz±5%
|
Ranging Capacity
|
0.05 ~ 3m
|
Minimum Impedance
|
170Ω±20%
|
Capacitance
|
1300pF±20% @1KHz
|
Sensitivity
|
on-load driving voltage:24 Vpp,distance0.3m,
Echo amplitude 300 mV |
Working Voltage
|
Peak Voltage<300VPP
|
Working Temperature Range
|
-40~+80℃
|
Pressure Sustained
|
≤3kilogramsor0.3MPa
|
Angle
|
((beam width) half-power angle@-3dB:4.5°±1,
acutance angle10.5°±2 |
shell material
|
S304
|
Purposes
|
ultrasonic flowmeter,
|
Installation Size
|
Product Structure
|
Protection Level
|
IP68
|
Weight
|
140g±5%(Length of wire:2m)
|
Wiring Specifications
|
integrated interface:red wire connecting transducer’s positive,white wire connecting transducer’s negative,black wire connecting
shielded wire,(default: without temperature sensor) |
