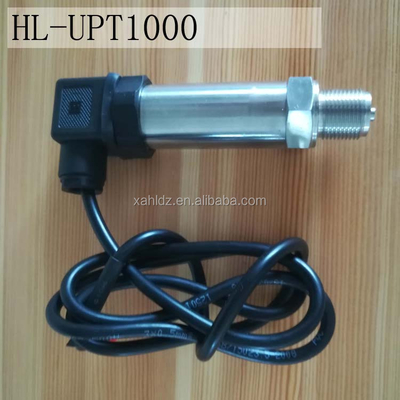

HL-UPT1000 Diffused silicon pressure transmitter
Company Profile
Xi'an Haolong Electronic Technology Co., Ltd. is headquartered in Xi'an National Hi-tech Industrial Development Zone, is a high-tech enterprise specializing in R&D, manufacturing, and sales of sensors, transmitters and related instruments. The current product category of the company involves the measurement of pressure, liquid level, ultrasonic wave, flow rate, temperature, and weighing. The core products have passed the European Union CE certification and other international authoritative organizations certification, some products have been explosion-proof flameproof certification, OIML certification.Since its inception, the company has always been guided by the needs of users and based on product quality. Thank you for your trust and support to Haolong. Your trust and support for Haolong are the driving force for Haolong's advancement!
Consumers say hello where are the products coming from? I can say this: The core is an imported piezoresistive oil-filled core, and the chip is a US BB industrial-grade chip. The calibration uses two-tenths of a weight piston pump. The multimeter uses a five-and-a-half digit digital multimeter, and has undergone at least two quality checks from production to debut. The customer's recognition of Haolong products is our pursuit.
Working principle
UPT series silicon piezoresistive OEM pressure sensor is an isolation diaphragm oil-filled silicon pressure measurement device. The pressure on the north side is transmitted to the silicon pressure sensitive chip with Wheatstone bridge and precise mechanical structure through the isolating diaphragm and the infused silicone oil to realize accurate conversion of the measured pressure and output signal. Products based on strict process flow in the advanced production line manufacturing, after computer automatic testing, laser trimming sensor zero point and temperature characteristics of the sophisticated compensation to ensure that each product's high precision and high reliability.
Features
The core uses an imported piezoresistive oil-filled core. The core shell and diaphragm are all 316L stainless steel. The chip is a US BB industrial chip. Full 304 stainless steel housing Calibration uses two-tenths of the weight piston pump. The multimeter uses a five and a half digital multimeter There are at least two quality inspections from production to appearance.
Product parameters
Product Name: Pressure Transmitter Product range: -0.1~100Mpa within any range Supply voltage: 12-36v Output signal: 4~20Ma 1~5V 0~5V 0~10V Medium temperature: -40°C~85°C Ambient temperature: -40°C~85°C Compensation temperature: -10°C~70°C Overload pressure: 200% FS Enclosure protection: IP65 Shell material: 304 stainless steel Accuracy: 0.1 level 0.2 level 0.5 level Measuring medium: Oil, water, gas and other stainless steel compatible media
Product model
HL-UPT1000 Universal Pressure Transmitter Selection Table
| |||||||
HL-UPT1000 | Universal Pressure Transmitter | ||||||
| Code Name | Leading Method | |||||
H |
H Hessman lead (default is no cable)
| ||||||
HK |
HK Aviation Plug Lead (default 1 meter cable) | ||||||
Z | Z direct lead (default 1 meter connector) | ||||||
| Code number | Measuring range | |||||
Code number | See the selection table for details | ||||||
| Code number | Signal output | |||||
S1 | 4-20mA two-wire system | ||||||
S2 | 0-5VDC three-wire system | ||||||
S3 | 1-5VDC three-wire system | ||||||
S4 | 0-10VDC three-wire system | ||||||
S11 | RS485 communication interface, standard MODBUS communication protocol four-wire system | ||||||
DZ | custom made | ||||||
| Code number | Connection method | |||||
Code number | See the connection method selection table | ||||||
| Code number | Accuracy level | |||||
A1 | 0.1%FS | ||||||
A2 | 0.2%FS | ||||||
A3 | 0.5%FS | ||||||
| Code number | Power supply | |||||
G | 9-36VDC | ||||||
DZ | custom made | ||||||
HL-UPT1000 | H | 11 | S1 | 14 | A1 | G | Selection example |
E.g：HL-UPT1000-H-11-S1-14-A1-G(Universal pressure transmitter, Hessman lead, range 0-600Kpa, 4-20mA two-wire system, connection M20*1.5, precision 0.1% FS, power supply 9-36VDC） | |||||||
Pressure range selection
HL-UPT1000 -Pressure range selection table | |||||||
Code number | range | Code number | range | Code number | range | Code number | range |
01 | 0~1Kpa(G) | 02 | 0~2Kpa(G) | 03 | 0~5Kpa(G) | 04 | 0~10Kpa(G) |
05 | 0~20Kpa(G) | 06 | 0~50Kpa(G) | 07 | 0~100Kpa(G) | 08 | 0~200Kpa(G) |
09 | 0~400Kpa(G) | 10 | 0~500Kpa(G) | 11 | 0~600Kpa(G) | 12 | 0~1Mpa(G) |
13 | 0~1.6Mpa(G) | 14 | 0~2.5Mpa(G) | 15 | 0~4Mpa(G) | 16 | 0~6Mpa(G) |
17 | 0~10Mpa(G) | 18 | 0~16Mpa(G) | 19 | 0~20Mpa(G) | 20 | 0~25Mpa(G) |
21 | 0~30Mpa(G) | 22 | 0~35Mpa(G) | 23 | 0~40Mpa(G) | 24 | 0~60Mpa(G) |
25 | 0~70Mpa(G) | 26 | 0~80Mpa(G) | 27 | 0~100Mpa(G) | 28 | 10Kpa(A) |
29 | 30Kpa(A) | 30 | 50Kpa(A) | 31 | 100Kpa(A) | 32 | 200Kpa(A) |
33 | 500Kpa(A) | 34 | 1Mpa(A) | 35 | 2Mpa(A) | 36 | ±1Kpa(A) |
37 | ±2Kpa(G) | 38 | ±2Kpa(G) | 39 | ±10Kpa(G) | 40 | ±20Kpa(G) |
41 | ±30Kpa(G) | 42 | ±40Kpa(G) | 43 | ±50Kpa(G) | 44 | ±100Kpa(G) |
45 | -100~200Kpa(G) | 46 | -100~500Kpa(G) | 47 | -0.1~1Mpa(G) | 48 | -1Kpa~0(G) |
49 | -2Kpa~0(G) | 50 | -3Kpa~0(G) | 51 | -5Kpa~0(G) | 52 | -10Kpa~0(G) |
53 | -20Kpa~0(G) | 54 | -30Kpa~0(G) | 55 | -40Kpa~0(G) | 56 | -50Kpa~0(G) |
57 | -100Kpa~0(G) | 58 | If have no you want we can customize the range | ||||
Note: G stands for gauge pressure; A stands for absolute pressure. If you need seal pressure, please contact customer service. | |||||||
