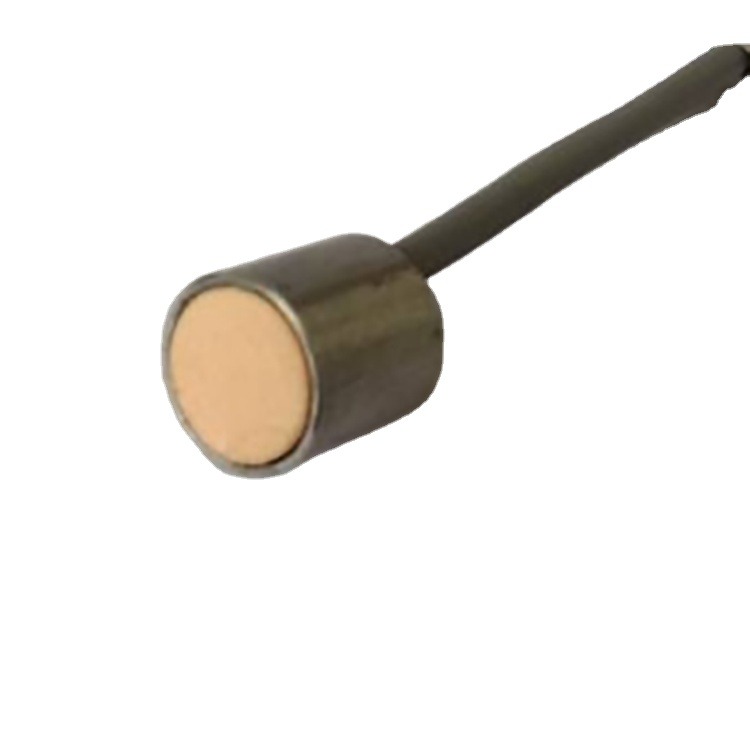

200KHz 10*10*10cm Ultrasonic Air Transducer Communication Piezoelectric 1.00 KG

1 Piece
MOQ
200KHz 10*10*10cm Ultrasonic Air Transducer Communication Piezoelectric 1.00 KG
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: Ultrasonic Transducer
Type: Ultrasonic Sensor
Usage: Ultrasonic Air Transducer
Theory: Ultrasonic
Output: Pulse Voltage Signal
Description: Ultrasonic Air Transducer
Basic Infomation
Model Number: Ultrasonic transducer
Payment & Shipping Terms
Packaging Details: Carton
Product Description
Products Description
Packaging
Carton
Single package size
10*10*10cm
Single gross weigh
1.00 KG
Place of Origin
Fujian,China
I Introduction
Ultrasonic transducer is a device capable of converting signals of energies into ultrasonic signals or energy or vice versa. Ultrasonic transducer can be in various types, such as Electric-acoustic ultrasonic transducer (e.g. piezocrystal transducer, magnetostrictive transducer, electrodynamic transducer, hydrodynamic transducer ect.) The ultrasonic transducers produced by our company are mainly piezocrystal transducer. The equivalent circuit of piezocrystal transducer is showed in the following diagram, quoted from Acoustic Measurement Experiment.

II Interface Bus Description
III Parameters
Items
Parameters
Article
200KHz Ultrasonic Transducer
Type
DA-200-01CLJZ
Frequency
200KHz±5%
Ranging Capacity
0.10～1.5m
Minimum Impedance
1000Ω±20％
Capacitance
450pF±20％ @1KHz
Sensitivity
on-load driving voltage:800Vpp,distance 0.3m,
Echo amplitude 35mV
Working Voltage
Peak Voltage＜1000 VPP
Working Temperature Range
-40～+80℃
Pressure Sustained
≤3kilos or 0.3MPa
Angle
(beam width) half-power angle @-3dB:8°±2,
acutance angle:20°±4
shell material
304 stainless steel
Purposes
Ultrasonic liquid level sensing, collision prevention, ultrasonic ranging,
Installation Size
size:12*10
Protection Level
IP68
Weight
12g±5％(Length of wire:40cm)
Wiring Specifications
integrated interface:red wire connecting transducer’s positive,white wire connecting transducer’s negative,black wire connecting
shielded wire,(default: without temperature sensor)


Measurement conditions The "measuring range" indicated in the data of air transducer is obtained in the following environment. 1. There is no volatile gas, steam or dust in the natural air. 2. The air is in a relatively static state, no flow. 3. Temperature: between 20 ℃ and 25 ℃. 4. Air pressure: 1 standard atmospheric pressure. 5. Measurement environment: there are no obstacles in the open area or a certain range around.
