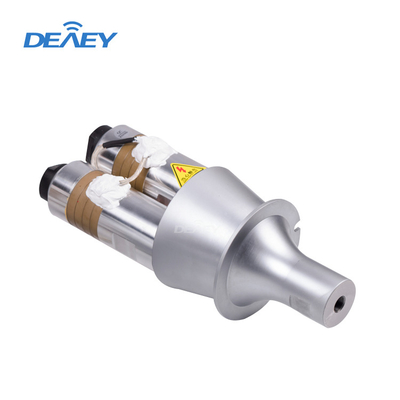

Plastic Welder Parts Two Welders 15khz 4200w Pressure Dual 15k Metal Vibration Welding High Power Ultrasonic Transducers

1 Piece
MOQ
$286.00(1 - 3 Pieces) $254.00(4 - 11 Pieces) $238.00(>=12 Pieces)
Price
Plastic Welder Parts Two Welders 15khz 4200w Pressure Dual 15k Metal Vibration Welding High Power Ultrasonic Transducers
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Voltage: 220v
Frequency: 15KHz
Welding Area: 270x25mm
Dimensions: 40x18.5x17.5cm
Usage: Welding Transducer
Warranty: 6 Months
After-sales Service Provided: Online Support, Video Technical Support
Key Selling Points: Long Service Life
Applicable Industries: Manufacturing Plant, Food & Beverage Factory
Weight (KG): 12 KG
Power (kW): 4200w
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Color: Silver
Product Name: 15khz 4200w Pressure Double 15k Plastic Metal Welder Parts
Application: Plastic Welders
Function: Welding
Welding Speed: 0.1s
For Suitable Materials: NON-WOVEN/PVC/PE/PP/ABS
Daily Protection: The Normal Temperature Air Cooling
MOQ: 1PCS
Other Name: Ultrasonic Oscillator
Packing: Foam Boxes, Cartons, Wooden Cases
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
Showroom Location: None
Basic Infomation
Payment & Shipping Terms
Packaging Details: 1pc1package,4pcs per cotton
Product Description
Product Description
Features:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrationsUltrasonic system is divided into three parts, ultrasonic generator, ultrasonic transducer and ultrasonic die, with the three parts is a complete ultrasound system.
Applications:
Paper Cup Making Machine, Nonwoven Machinery, such as Nonwoven Bag Making Machine, Nonwoven Surgical Cap Making Machine, Nonwoven Bouffant Cap Making Machine, Nonwoven Shoe Cover Making Machine, Nonwoven Ultrasonic Plastic Welding Machine, Ultrasonic Lace machine, Three Layers Bag Making Machines, Plastic Bag Making Machine, Stationery, Machinery,Automation Equipment, etc.
Specification
power
4200W
Capacitance
19Nf
Piezoelectric ceramic
Pzt8-60x30x10mm
Color of Piezo
Yellow
Quantity of Piezo
8pcs
Frequency Range
15KHz
Application
Welding
Ambient temperature
5~50degrees
Weight
12kg
Wave form
Long Wave/Intermittent Wave
Origin
China Zhejiang
Joint Screw
M16*1
Certificate
CE
Company Profile
Packing
FAQ
Q: How to ship your products to us?
A: You are always advised the customers to choose FedEx, DHL ,UPS, TNT ,if your order is not so large,
if your order is large, by air or by sea maybe can save a lot of shipping cost. And the shipping cost depending on the total weight of your order

Q: How about the quality
A: In order to get a reliable quality products, please tell and list all your product quality requirements and standard your
market requested before we produce the samples for you. Usually the sample quality is agreed by both of us .Tell us if you need a special approval in your market. We prefer to supply a reliable quality products to our customers and do not compete by a lower price immolating the quality

Q: How to place an order?
A: Please send us your purchase order by email or fax. Or you can ask us to send you a Proforma invoice for your order We need to know the following information for your order A.Shipping information- company name, street address, phone number, fax number destination airport or sea port, transportation method( by courier, by air or by ocean container)
B.Product information-model numbers, quantity, unit price
C. Delivery time required
D. Freight payment by collect or prepay
E. Forwarder's contact details if there's any in China or Hong Kong

Q: What's your usual payment term for orders?
A: We accept terms of Bank, T/T, West union payment or Paypal

Q: How about the delivery time?
A: Usually 7-14days for a trial order or small order, 25-30days for a large order or container order. We will specify a delivery
time before you order. If we meet difficulties during production and could not ship to them in time, we will inform you in advance and tell you the causes.

Q: What's the warranty of your products and how about the after-sale service?
A: From 6 months to 2 years, depending on the products. We will tell you a specific warranty when you order from us. The warranty period is valid from shipment date or B/L date. Tell us by e-mail or telephone or fax in time any questions or difficulties for help if you sale

Q: Do you accept OEM and print our logo or company name on these package box we order from you?
A: Yes. OEM and ODM is welcome. But sometimes we will set a MOQ for OEM order.

Q: May I only buy a few pieces of your products or several samples to test?
A: Yes, you are also welcome! Usually we do not limit a MoQ for testing, just decide the QTY by yourself and your sales

Q: How much the courier freight will be for the samples?
A: Courier freight depends on the quantity, weight and carton size and your area, please call your local DHL, Fedex, UPS or TNT and ask a price If you buy some samples, usually we will offer you a CIF price

Q: How can I get your price list and Catalogues?
A: Please E-mail us or by Wechat / WhatsApp .
Please let we know your contact information(your name, email address, company name and website)
