Factory Ultrasonic Piezoelectric Vibrator Transducer 120 KHz 40KHz Electroplating Immersive Ultrasonic Transducer

1.0 Pieces
MOQ
Factory Ultrasonic Piezoelectric Vibrator Transducer 120 KHz 40KHz Electroplating Immersive Ultrasonic Transducer
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Applicable Industries: Manufacturing Plant, Restaurant, Printing Shops, Food & Beverage Shops, Ultrasonic Cleaning Industry
Weight (KG): 20
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Condition: New
Product Name: Submersible Ultrasonic Vibration Transducer Plate
Key Words: Immersible 40KHz Ultrasonic Transducer
Products Series: JYD-1000P
Material: High Quality SUS 316L
Voltage: 110V/220V/240V
Brand: JYD/OEM
Frequency: 17/20/25/28/40/53/68/80/100/132/170/200Khz
Ultrasonic Power: 600W To 2400W
Application Area: Electroplating Factory
Professional Techno Support: 100%
Basic Infomation
Payment & Shipping Terms
Packaging Details: 1pcs in a wooden case Ultrasonic Piezoelectric Vibrator Immersible Transducer 120 KHz 40KHz Ultrasonic Transducer
Supply Ability: 1000 Piece/Pieces per Month
Product Description
Recommend Products
Products Description
Ultrasonic Piezoelectric Vibrator Immersible Transducer 120 KHz 40KHz Ultrasonic Transducer

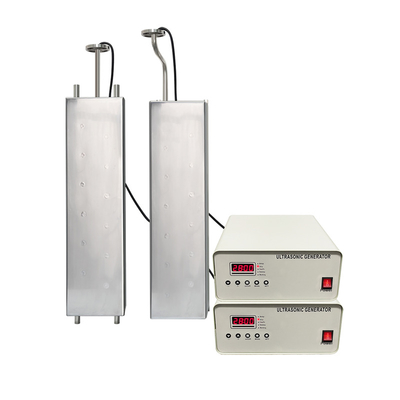

Immersion ultrasonic vibration plate
Submersible ultrasonic cleaning transducers unit can be installed in the tank by three ways as below: side, top and bottom.
Model
Ultrasonic power
Ultrasonic frequency
Max temperature
Vibration plate size
JYD-1012P
600W
25/28/40/68/80/100/132/170/200KHz



Material:316L/304 stainless steel
Thickness:2.0-3.0mm
Cable length:5m(custom)
90℃
350*300*100mm
JYD-1018P
900W
90℃
450*300*100mm
JYD-1024P
1200W
90℃
550*400*100mm
JYD-1030P
1500W
90℃
580*400*100mm
JYD-1036P
1800W
90℃
600*500*100mm
JYD-1042P
2100W
90℃
650*550*100mm
JYD-1048P
2400W
90℃
700*600*100mm
Our Advantages
Ultrasonic transducer vibratinng plate
The submersible ultrasonic cleaner is the customized and easy install ultrasonic cleaning system, the ultrasonic power is 1000w,
frequency can be 28khz, 40khz, 68khz, 80khz, 100khz or 130khz, 170khz , 200khz customized.
Waterproof high quality ultrasonic transducer

Immersion Ultrasonic Vibration Plate Features:

1) Immersible ultrasonic transducer unit can be installed in the tank by three ways: side, top and bottom. The ultrasonic cleaning device is composed of the immersible ultrasonic transducer and generator. If ultrasonic cleaning machine of the standard model cannot be applied to a specific working environment, you can also make immersible ultrasonic transducer pack according to customizing special specifications. The working positions can be installed to fluid tank top side, bottom side or both side to achieve different cleaning effects.

2) It is of an all stainless steel structure, acid- and alkali-resistant, beautiful and durable. Strong
acid- and strong alkali-resistant titanium plate material is used to reinforce and tighten welding.

3) It is welded with high quality SUS304 or 316L stainless steel, which has a long working life.

4) It uses high Q value ultrasonic transducers, which has high ultrasonic power.

5) The ultrasonic generator and immersible transducer are connected with separated high-frequency wires, which is convenient for repair and maintenance.

6) It can work continuously for 24 hours, which is suitable for mass production.
